    Чертеж

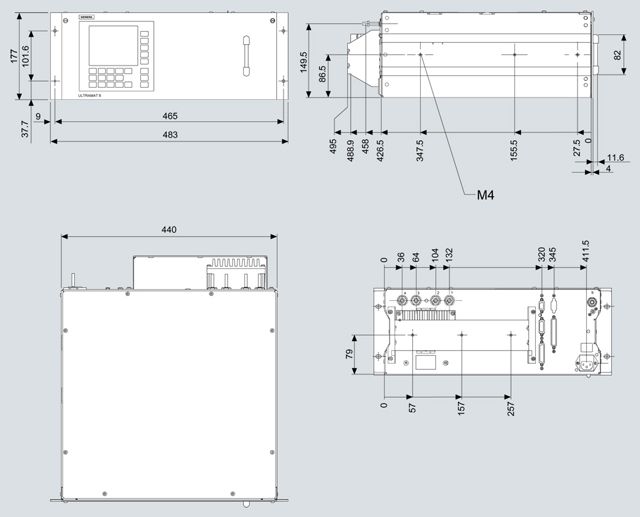

    ULTRAMAT 6, 19“ unit, dimensions in mm

    Схема подключения

    Pin assignment (electrical and gas connections)

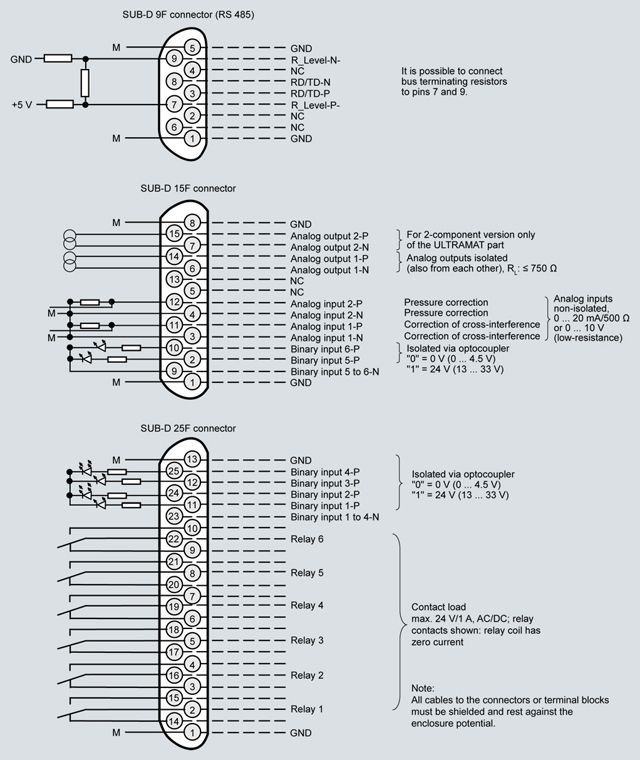

    ULTRAMAT 6, 19“ unit, pin assignment

    ULTRAMAT 6, 19“ unit, pin assignment of Autocal board and PROFIBUS connectors

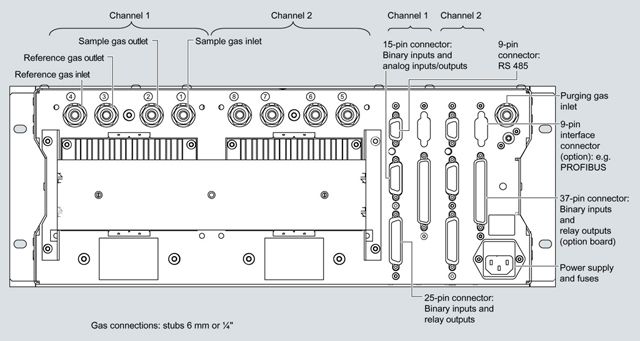

    ULTRAMAT 6, 19“ unit, gas and electrical connections (example: 2-channel version)

    Технические данные

    ULTRAMAT 6, 19“ unit



    General



    Measuring ranges

    4, switchable internally and externally; autoranging is also possible

    Smallest possible measuring range

    Depending on application, e.g., CO: 0 … 10 vpm, CO2: 0 … 5 vpm

    Largest possible measuring span

    Depending on application

    Measuring range with suppressed zero

    Every zero possible within 0 to 100 Vol.%, smallest possible measuring span 20%

    Characteristic

    Linearized

    Position of use

    Front panel vertical

    Conformity

    CE identification EN 50081-1, EN 50082-2

    Design, enclosure



    Weight

    Approx. 15 kg (with one IR channel),

    approx. 21 kg (with two IR channels)

    Degree of protection

    IP20 according to EN 60529

    Electrical characteristics



    Electromagnetic compatibility (EMC)

    According to standard requirements of NAMUR NE21 (08/98)

    Electrical safety

    According to EN 61010-1, overvoltage category III

    Power supply

    100 to 120 V AC (rated range 90 to 132 V), 48 to 63 Hz or

    200 to 240 V AC (rated range 180 to 264 V), 48 to 63 Hz

    Power consumption

    1-channel unit: approx. 40 VA

    2-channel unit: approx. 70 VA

    Fuses


    • 100... 120 V

    1T/250 (7MB2121), 1.6T/250 (7MB2123)

    • 200... 240 V

    0.63T/250 (7MB2121), 1T/250 (7MB2123)

    Gas inlet conditions



    Perm. sample gas pressure


    • for analyzers with hoses

    • without pressure switch

    600 to 1500 hPa (absolute)

    • with pressure switch

    600 to 1300 hPa (absolute)

    • for analyzers with pipes (without pressure switch)

    600 to 1500 hPa (absolute)

    Sample gas flow

    18 to 90 l/h (0.3 to 1.5 l/min)

    Sample gas temperature

    0 to 50 °C

    Sample gas humidity

    < 90 % RH (relative humidity) or depending on application, non condensing

    Time response



    Warm-up period

    With amb. temperature < 30 min (maximum accuracy achieved after 2 hours)

    Response time (T90 time)

    Dependent on length of analyzer cell, sample gas line and damping

    Damping (electric time constant)

    0 to 100 s, programmable

    Dead time (purging time of gas path in analyzer at 1 l/min)

    Approx. 0.5 to 5 s, depending on version

    Time for internal signal processing

    < 1 s

    Pressure correction range



    Pressure sensor


    • internal

    600 to 1200 hPa absolute

    • external

    600 to 1500 hPa absolute

    Measuring response (maximum accuracy achieved after 2 hours)

    Output signal fluctuation

    ± 0.1 % to ± 1 % of smallest possible measuring range specified on rating plate depending on application with the unit specific electronic time constant (corresponds to ± 0.33% at 2σ)

    Zero drift

    < 1% of measuring range/week

    Measured-value drift

    < 1% of measuring range/week

    Repeatability

    ≤ 1% of respective measuring range

    Minimum detectable quantity

    1% of smallest measuring range

    Linearity error

    < 0.5% of full-scale value

    Influencing variables (referred to 1000 hPa sample gas pressure, 0.5 l/min sample gas flow and 25 °C ambient temperature)

    Ambient temperature

    < 1% of measuring range/10 K (for a constant temperature of the reception cell)

    Sample gas pressure

    With pressure compensation: < 0.15% of span/1% change in atmospheric pressure

    without pressure compensation: < 1.5% of span/1% change in atmospheric pressure

    Sample gas flow

    Negligible

    Power supply

    < 0.1% of output signal span with rated voltage ± 10%

    Ambient conditions

    Application-dependent influencing of measurement if ambient air contains measured component or cross-sensitive gases

    Electric inputs and outputs



    Analog output

    0/2/4 to 20 mA. floating; load ≤ 750 Ω

    Relay outputs

    6, with changeover contacts, freely parameterizable, e.g. for range identification; loading capacity: 24 V AC/DC / 1 A floating, non sparking

    Analog inputs

    2, designed for 0/2/4 to 20 mA, for external pressure sensor and correction of influence of residual gas (correction of cross interference)

    Binary inputs

    6, designed for 24 V, floating, freely parameterizable, e.g. for range switching

    Serial interface

    RS 485

    Options

    Autocal function with 8 additional binary inputs and 8 relay outputs, also with PROFIBUS PA and PROFIBUS DP

    Ambient conditions



    Permissible ambient temperature

    -30 to +70 °C during storage and transport, +5 to +45 °C during operation

    Permissible humidity

    < 90 % RH (relative humidity) as annual average, during storage and transport (dew point must not be fallen below)
