    ET 200SP BusAdapter (RJ45)

    BusAdapter BA 2xFC

    Some interface modules of the SIPLUS ET 200SP have a universal PROFINET interface for BusAdapters. With the appropriate bus adapter, the type of connection can be adapted to the requirements of the respective application:

    • For standard applications with a moderate mechanical and EMC load, the BusAdapter BA 2xRJ45 is used. It offers two sockets for standard RJ45 plugs.
    • For machines and systems in which higher mechanical and/or EMC loads act on the devices, the BusAdapter BA 2xFC is recommended. In this case, the bus cables are connected directly by means of FastConnect terminals – similar to the PROFIBUS connector, proven in millions of applications. The technology is extremely quick to assemble and achieves 5 times better vibration resistance and also 5 times greater resistance to electromagnetic interference, when compared to RJ45 plug-in connectors.
    • BusAdapters with connections for fiber-optic cables can be used to cover high potential differences between two stations and/or high EMC loads.

    Another advantage of the BusAdapters: In order to repair defective RJ45 sockets or for subsequent conversion to the rugged FastConnect technology or a fiber-optic connection, only the adapter needs to be replaced.

    The following interface modules offer a PROFINET connection via BusAdapter:

    • SIPLUS IM 155-6PN Standard
    • SIPLUS IM 155-6PN High Feature
    Note

    SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.

    Дизайн

    ET 200SP BusAdapter “BA-Send"
    • Inserted immediately next to the head-end station on a “BU-Send” BaseUnit.
    • Can be used on interface modules in "Standard" function class or above.
    • Can be used on CPU 1510SP (F) and CPU 1512SP (F), as well as Open Controller 1515 SP2.
    SIMATIC BusAdapters
    • Are plugged onto the device with SIMATIC BusAdapter interface and can be equipped with an equipment labeling plate for identification of the equipment.
    • BusAdapters with a copper interface can be used on all devices with a SIMATIC BusAdapter interface.
    • BusAdapter with FOC interface can be used on selected devices with SIMATIC BusAdapter interface (e.g. ET 200SP interface module with High Feature function class or above, CPU 1512SP (F), etc.)
    • Versions with two PN copper interfaces (RJ45 or FastConnect (FC)):
      • BA 2xRJ45 with 2 RJ45 sockets
      • BA 2xFC with 2 FastConnect connections

    Versions with one or two PN fiber-optic cable (FOC) connections:

    • BA 2xSCRJ with 2 SCRJ sockets
      • BA SCRJ / RJ45 each with one SCRJ and one RJ45 socket (media converter)
      • BA SCRJ / FC with one SCRJ socket and one FastConnect connection (media converter)
      • BA 2xLC with two LC (Lucent Connector) sockets
      • BA LC / RJ45 each with one LC and one RJ45 socket (media converter)
      • BA LC / FC with one LC socket and one FastConnect connection (media converter)

    Assembly

    FastConnect (FC)
    Using the FastConnect stripping tool, the outer sheath and braided shielding can be quickly and conveniently removed from Industrial Ethernet FastConnect cables in one simple operation. The detached PN bus cable is connected directly to the FC connector by means of the FastConnect terminals – in a similar way to the PROFIBUS connector, tried and tested in millions of applications. It is then only necessary to close the cover and lock it with the slider (no tools required).

    FastConnect stripping tool

    RJ45
    In principle, all industry standard RJ45 Ethernet connectors can be used here. If the PN cable is to be assembled on site, the FastConnect stripping tool can be also be used here in connection with the "Industrial Ethernet FastConnect RJ45 Plug 180" connector.

    IE FC RJ45 Plug 180

    SCRJ
    POF and PCF fiber-optic cables can be assembled easily on site using the PROFINET-compatible SC RJ-connectors. The SC RJ connector used for both cable versions is a connector that secures the fibers and the strain relief elements by means of a clamping mechanism in the connector (screwed).

    SC RJ connector (PCF)

    POF cables
    With the aid of the IE Termination Kit SC RJ POF Plug, cable lengths specific to the plant requirements can be assembled quickly and easily using the "SC RJ POF Plug". In the case of the POF cables, the fibers protruding at the connector are trimmed to length with side cutters and then polished.

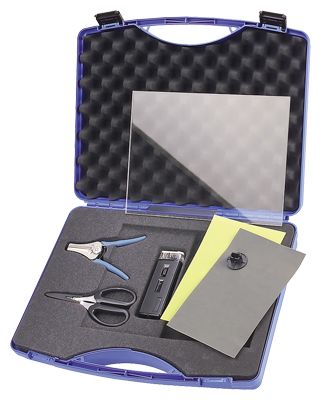

    IE Termination Kit SC RJ POF Plug

    PCF cables
    With the aid of the IE Termination Kit SC RJ PCF Plug, cable lengths specific to the plant requirements can be assembled quickly and easily using the "SC RJ POF Plug". In the case of the PCF cables, the fibers protruding from the connector are broken with a special tool after fixing in the connector.

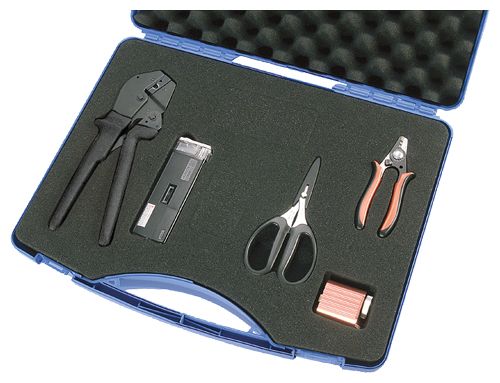

    IE Termination Kit SC RJ PCF Plug

    LC
    LC connectors are extremely compact next-generation "small form factor" (SFF) connectors. The connector is available in a duplex version and is interlocked by means of the push/pull system. With the aid of the FC FO Termination Kit (LC), cable lengths specific to the plant requirements can be assembled quickly and easily using the "FC FO LC Plug" LC connector. No specially trained personnel or expensive tools are necessary. Alternatively, pre-assembled glass fiber cables are offered.

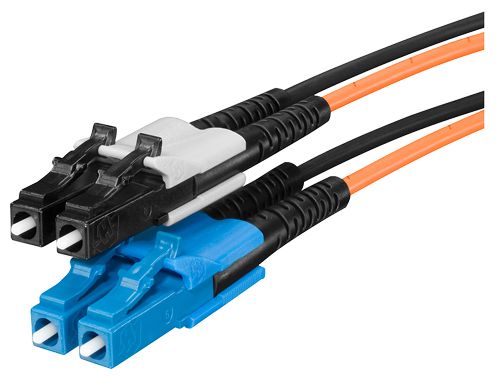

    FC FO LC Plug

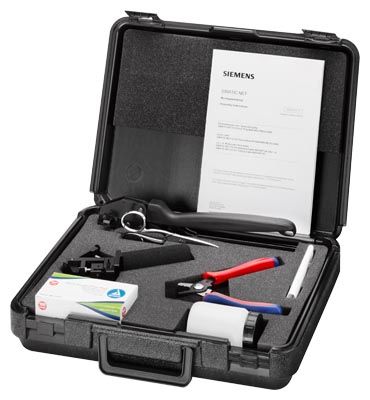

    FC FO Termination Kit (LC)

    Технические данные

    Order number

    6AG1193-6AR00-7AA0

    6AG1193-6AF00-7AA0

    6AG1193-6AP00-2AA0

    SIPLUS ET 200SP BA 2xRJ45

    SIPLUS ET 200SP BA 2XFC PN

    SIPLUS ET 200SP BA 2XSCRJ PN

    General information







    Product type designation

    BusAdapter BA 2x RJ45

    BusAdapter BA 2x FC

    BusAdapter BA 2x SCRJ

    Interfaces







    Number of PROFINET interfaces

    2

    2

    1; 2 ports (switch) SCRJ FO

    PROFINET IO







    • RJ 45

    Yes

    • FC (FastConnect)

    Yes

    • Number of SCRJ ports

    2

    Cable length







    • PCF

    100 m

    • Plastic FOC (POF)

    50 m

    • PCF-GI

    300 m

    • Cu conductors

    100 m

    Ambient conditions







    Ambient temperature during operation







    • min.

    -40 °C; = Tmin; Startup @ -25 °C

    -40 °C; = Tmin; Startup @ -25 °C

    -40 °C; = Tmin; Startup @ -25 °C

    • max.

    70 °C; = Tmax

    70 °C; = Tmax

    60 °C; = Tmax

    Extended ambient conditions







    • relative to ambient temperature-atmospheric pressure-installation altitude

    Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m) // Tmin ... (Tmax - 10K) at 795 hPa ... 658 hPa (+2000 m ... +3500 m) // Tmin ... (Tmax - 20K) at 658 hPa ... 540 hPa (+3500 m ... +5000 m)

    Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m) // Tmin ... (Tmax - 10K) at 795 hPa ... 658 hPa (+2000 m ... +3500 m) // Tmin ... (Tmax - 20K) at 658 hPa ... 540 hPa (+3500 m ... +5000 m)

    Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m) // Tmin ... (Tmax - 10K) at 795 hPa ... 658 hPa (+2000 m ... +3500 m) // Tmin ... (Tmax - 20K) at 658 hPa ... 540 hPa (+3500 m ... +5000 m)

    Relative humidity







    • With condensation, tested in accordance with IEC 60068-2-38, max.

    100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

    100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

    100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

    Resistance







    • against biologically active substances / conformity with EN 60721-3-3

    Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna). The supplied connector covers must remain on the unused interfaces during operation!

    Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna). The supplied connector covers must remain on the unused interfaces during operation!

    Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna). The supplied connector covers must remain on the unused interfaces during operation!

    • against chemically active substances / conformity with EN 60721-3-3

    Yes; Class 3C4 (RH < 75%) incl. salt spray according to EN 60068-2-52 (degree of severity 3). The supplied connector covers must remain on the unused interfaces during operation!

    Yes; Class 3C4 (RH < 75%) incl. salt spray according to EN 60068-2-52 (degree of severity 3). The supplied connector covers must remain on the unused interfaces during operation!

    Yes; Class 3C4 (RH < 75%) incl. salt spray according to EN 60068-2-52 (degree of severity 3). The supplied connector covers must remain on the unused interfaces during operation!

    • against mechanically active substances / conformity with EN 60721-3-3

    Yes; Class 3S4 incl. sand, dust. The supplied connector covers must remain on the unused interfaces during operation!

    Yes; Class 3S4 incl. sand, dust. The supplied connector covers must remain on the unused interfaces during operation!

    Yes; Class 3S4 incl. sand, dust. The supplied connector covers must remain on the unused interfaces during operation!

    Dimensions







    Width

    20 mm

    20 mm

    20 mm

    Height

    69.5 mm

    69.5 mm

    69.5 mm

    Depth

    59 mm

    59 mm

    59 mm

    Weights







    Weight, approx.

    46 g

    53 g

    50 g


    Дальнейшая информация

    Brochures

    Information material for downloading can be found on the Internet:

    http://www.siemens.com/simatic/printmaterial
