RUGGEDCOM RS400

• Информационные материалы

  Информационные материалы

  The RUGGEDCOM RS400 is a utility grade, serial device server with an integrated, fully managed Ethernet switch, designed to operate reliably in electrically harsh and climatically demanding environments. Featuring an integrated 4-port serial server, a 4-port managed Ethernet switch, and an optional V.90 modem, the RUGGEDCOM RS400 is able to interconnect multiple types of intelligent electronic devices (IEDs) that have different methods of communication. Using the RUGGEDCOM RS400 results in fewer connectivity devices, reducing overall system costs, and also extends the useful life of existing legacy IEDs, minimizing capital expenditure for new equipment.

  Features

  • Fully compliant EIA/TIA RS485, RS422, RS232 serial ports (software selectable)
  • Different types of serial connectors DB9, RJ45 or Phoenix style connectors
  • Integrated Ethernet switch – up to 4 ports
  • 10/100BaseTX, 10BaseFL, 100BaseFX options
  • Enables transmitting from serial data over an IP network
  • Non-blocking, store and forward switching
  • 24 VDC, 48 VDC, or high-power (88–300 VDC / 85–264 VAC) options for worldwide operability
  • For use at ambient temperatures from –40 °C to +85 °C without the use of fans

  Product versions

  RUGGEDCOM RS400

  • Serial device server with integrated fully managed Ethernet switch with 128-bit encryption

  RUGGEDCOM RS400LNC

  • Serial device server with integrated fully managed Ethernet switch with 56-bit encryption

  Интеграция

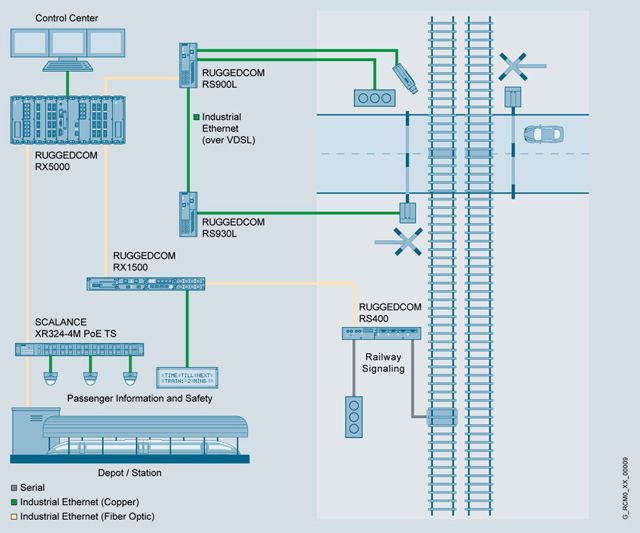

  Intelligent Traffic Systems - wayside infrastructure using the RUGGEDCOM RS400 to connect legacy devices to an Ethernet infrastructure

  Дальнейшая информация

  To assist in selecting the right RUGGEDCOM products as well as configuration of variants, the RUGGEDCOM Selector is available at:

  http://www.siemens.com/ruggedcom-selector
