F-CPU

F-CPU для ET 200pro:

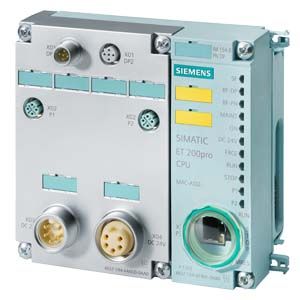

IM 154-8 F PN/DP CPU

Область применения

Besides the standard CPUs with graduated levels of performance, fail-safe versions are also available for the ET 200pro:

Fail-safe CPUs

IM 154-8F PN/DP CPU and IM 154-8FX PN/DP CPU:
for fail-safe applications with medium requirements regarding the program scope and processing speed, for distributed setup via PROFINET IO or PROFIBUS DP.
CPU 1516pro F-2 PN:
for fail-safe applications with high requirements on the program scope, processing speed and networking, for distributed setup via PROFINET IO RT/IRT. The additional integrated PROFINET IO interface with separate IP address can be used, for example, for network separation.

Технические данные

Order number	6ES7154-8FB01-0AB0	6ES7154-8FX00-0AB0
	ET200PRO: IM 154-8F PN/DP CPU, 512KB	ET200PRO: IM 154-8FX PN/DP CPU, 1,5MB
General information
Engineering with
● Programming package	STEP 7 V5.5 or higher, Distributed Safety V5.4 SP4	As of STEP 7 V5.5 with HSP 222 + Distributed Safety V5.4 SP4
Supply voltage
Rated value (DC)	24 V	24 V
Power loss
Power loss, typ.	8.5 W	8.5 W
Memory
Work memory
● integrated	512 kbyte	1 536 kbyte
Load memory
● Plug-in (MMC), max.	8 Mbyte	8 Mbyte
CPU processing times
for bit operations, typ.	0.05 µs	0.025 µs
for word operations, typ.	0.09 µs	0.03 µs
for fixed point arithmetic, typ.	0.12 µs	0.04 µs
for floating point arithmetic, typ.	0.45 µs	0.16 µs
Counters, timers and their retentivity
S7 counter
● Number	256	256
IEC counter
● present	Yes	Yes
S7 times
● Number	256	256
IEC timer
● present	Yes	Yes
Data areas and their retentivity
Flag
● Number, max.	2 048 byte	2 048 byte
Address area
I/O address area
● Inputs	2 048 byte	2 048 byte
● Outputs	2 048 byte	2 048 byte
Process image
● Inputs, adjustable	2 048 byte	2 048 byte
● Outputs, adjustable	2 048 byte	2 048 byte
Time of day
Clock
● Hardware clock (real-time)	Yes	Yes
Operating hours counter
● Number	1	1
1. Interface
Interface type	Integrated RS 485 interface	Integrated RS 485 interface
Physics	RS 485/connection: 2 x M12 b-coded	RS 485/connection: 2 x M12 b-coded
Functionality
● MPI	Yes	Yes
● PROFIBUS DP master	Yes	Yes
● PROFIBUS DP slave	Yes	Yes
● Point-to-point connection	No	No
DP master
● Number of DP slaves, max.	124	124
2. Interface
Interface type	PROFINET	PROFINET
Physics	Ethernet (2 x M12 d-coded; 1 x RJ45)	Ethernet (2 x M12 d-coded; 1 x RJ45)
Interface types
● Number of ports	3	3
Functionality
● MPI	No	No
● PROFINET IO Controller	Yes; Also simultaneously with IO-Device functionality	Yes; Also simultaneously with IO-Device functionality
● PROFINET IO Device	Yes; Also simultaneously with IO Controller functionality	Yes; Also simultaneously with IO Controller functionality
● PROFINET CBA	Yes	Yes
● PROFIBUS DP master	No	No
● PROFIBUS DP slave	No	No
Isochronous mode
Isochronous operation (application synchronized up to terminal)	Yes; Via PROFIBUS DP or PROFINET interface	Yes; Via PROFIBUS DP or PROFINET interface
Communication functions
PG/OP communication	Yes	Yes
Global data communication
● supported	Yes	Yes
S7 basic communication
● supported	Yes	Yes
S7 communication
● supported	Yes	Yes
Open IE communication
● TCP/IP	Yes; via integrated PROFINET interface and loadable FBs	Yes; via integrated PROFINET interface and loadable FBs
— Number of connections, max.	8	8
● ISO-on-TCP (RFC1006)	Yes	Yes
— Number of connections, max.	8	8
● UDP	Yes	Yes
— Number of connections, max.	8	8
Web server
● supported	Yes	Yes
Configuration
Programming
Programming language
— LAD	Yes	Yes
— FBD	Yes	Yes
— STL	Yes	Yes
— SCL	Yes	Yes
— CFC	Yes	Yes
— GRAPH	Yes	Yes
— HiGraph®	Yes	Yes
Know-how protection
● User program protection/password protection	Yes	Yes
● Block encryption	Yes; With S7 block Privacy	Yes; With S7 block Privacy
Dimensions
Width	135 mm	135 mm
Height	130 mm	130 mm
Depth	65 mm; 60 mm without cover for RJ45 socket; 65 mm with cover for RJ45 socket	65 mm; 60 mm without cover for RJ45 socket; 65 mm with cover for RJ45 socket
Weights
Weight, approx.	720 g	720 g

Order number		6ES7516-2GN00-0AB0
		ET 200pro: CPU 1516PRO F-2 PN
General information
Product type designation		CPU 1516pro F-2 PN
Engineering with
● STEP 7 TIA Portal configurable/integrated as of version		V14
Supply voltage
Type of supply voltage		24 V DC
Power loss
Power loss, typ.		5.3 W
Memory
Work memory
● integrated (for program)		1.5 Mbyte
● integrated (for data)		5 Mbyte
Load memory
● Plug-in (SIMATIC Memory Card), max.		32 Gbyte
CPU processing times
for bit operations, typ.		10 ns
for word operations, typ.		12 ns
for fixed point arithmetic, typ.		16 ns
for floating point arithmetic, typ.		64 ns
Counters, timers and their retentivity
S7 counter
● Number		2 048
IEC counter
● Number		Any (only limited by the main memory)
S7 times
● Number		2 048
IEC timer
● Number		Any (only limited by the main memory)
Data areas and their retentivity
Flag
● Number, max.		16 kbyte
Address area
I/O address area
● Inputs		32 kbyte; All inputs are in the process image
● Outputs		32 kbyte; All outputs are in the process image
Address space per module
● Address space per module, max.		256 byte; For input and output data respectively
Address space per station
● Address space per station, max.		4 096 byte; for central inputs and outputs; depending on configuration
Time of day
Clock
● Type		Hardware clock
1. Interface
Interface types
● Number of ports		3; 2x M12 + 1x RJ45
● integrated switch		Yes
● RJ 45 (Ethernet)		Yes; X1 P3
Functionality
● PROFINET IO Controller		Yes
● PROFINET IO Device		Yes
● SIMATIC communication		Yes
● Open IE communication		Yes
● Web server		Yes
● Media redundancy		Yes
PROFINET IO Controller
Services
— PG/OP communication		Yes
— S7 routing		Yes
— Isochronous mode		Yes
— Open IE communication		Yes
— IRT		Yes
— MRP		Yes; As MRP redundancy manager and/or MRP client; max. number of devices in the ring: 50
— MRPD		Yes; Requirement: IRT
— PROFIenergy		Yes
— Prioritized startup		Yes; Max. 32 PROFINET devices
— Number of connectable IO Devices, max.		256; In total, up to 1 000 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
— Of which IO devices with IRT, max.		64
— Number of connectable IO Devices for RT, max.		256
— of which in line, max.		256
— Number of IO Devices that can be simultaneously activated/deactivated, max.		8; in total across all interfaces
— Number of IO Devices per tool, max.		8
— Updating times		The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data
Update time for IRT
— for send cycle of 250 µs		250 μs to 4 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 500 µs of the isochronous OB is decisive
— for send cycle of 500 µs		500 µs to 8 ms
— for send cycle of 1 ms		1 ms to 16 ms
— for send cycle of 2 ms		2 ms to 32 ms
— for send cycle of 4 ms		4 ms to 64 ms
— With IRT and parameterization of "odd" send cycles		Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs)
Update time for RT
— for send cycle of 250 µs		250 µs to 128 ms
— for send cycle of 500 µs		500 µs to 256 ms
— for send cycle of 1 ms		1 ms to 512 ms
— for send cycle of 2 ms		2 ms to 512 ms
— for send cycle of 4 ms		4 ms to 512 ms
PROFINET IO Device
Services
— PG/OP communication		Yes
— S7 routing		Yes
— Isochronous mode		No
— Open IE communication		Yes
— IRT		Yes
— MRP		Yes
— MRPD		Yes; Requirement: IRT
— PROFIenergy		Yes
— Prioritized startup		No
— Shared device		Yes
— Number of IO Controllers with shared device, max.		4
2. Interface
Interface types
● Number of ports		1; 1x M12
● integrated switch		No
● RJ 45 (Ethernet)		No
Functionality
● PROFINET IO Controller		Yes
● PROFINET IO Device		Yes
● SIMATIC communication		Yes
● Open IE communication		Yes
● Web server		Yes
● Media redundancy		No
PROFINET IO Controller
Services
— PG/OP communication		Yes
— S7 routing		Yes
— Isochronous mode		No
— Open IE communication		Yes
— IRT		No
— MRP		No
— PROFIenergy		Yes
— Prioritized startup		No
— Number of connectable IO Devices, max.		32; In total, up to 1 000 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET
— Number of connectable IO Devices for RT, max.		32
— of which in line, max.		32
— Number of IO Devices that can be simultaneously activated/deactivated, max.		8; in total across all interfaces
— Number of IO Devices per tool, max.		8
— Updating times		The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data
Update time for RT
— for send cycle of 1 ms		1 ms to 512 ms
PROFINET IO Device
Services
— PG/OP communication		Yes
— S7 routing		Yes
— Isochronous mode		No
— Open IE communication		Yes
— IRT		No
— MRP		No
— MRPD		No
— PROFIenergy		Yes
— Prioritized startup		No
— Shared device		Yes
— Number of IO Controllers with shared device, max.		4
Protocols
Number of connections
● Number of connections, max.		128; Via integrated interfaces of the CPU
Isochronous mode
Isochronous operation (application synchronized up to terminal)		Yes; Via X1, with minimum OB 6x cycle of 375 µs
Supported technology objects
Motion Control		Yes; Note: The number of axes affects the cycle time of the PLC program; selection guide via the TIA Selection Tool or SIZER
Controller
● PID_Compact		Yes; Universal PID controller with integrated optimization
● PID_3Step		Yes; PID controller with integrated optimization for valves
● PID-Temp		Yes; PID controller with integrated optimization for temperature
Counting and measuring
● High-speed counter		Yes
Highest safety class achievable in safety mode
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL3		< 2.00E-05
— High demand/continuous mode: PFH in accordance with SIL3		< 1.00E-09
Ambient conditions
Ambient temperature during operation
● horizontal installation, min.		-25 °C
● horizontal installation, max.		55 °C
● vertical installation, min.		-25 °C
● vertical installation, max.		55 °C
Configuration
Programming
Programming language
— LAD		Yes; incl. failsafe
— FBD		Yes; incl. failsafe
— STL		Yes
— SCL		Yes
— GRAPH		Yes
Know-how protection
● User program protection/password protection		Yes
● Copy protection		Yes
● Block protection		Yes
Access protection
● Protection level: Write protection		Yes
● Protection level: Read/write protection		Yes
● Protection level: Complete protection		Yes
Dimensions
Width		135 mm
Height		130 mm
Depth		65 mm
Weights
Weight, approx.		614 g

Дальнейшая информация

Further information and downloads

Manuals

The manuals for ET 200pro can be downloaded online for free from SIMATIC Customer Support:
https://support.industry.siemens.com/cs/document/21210852

General information

http://www.siemens.com/et200pro

SIMATIC Selection Tool

http://www.siemens.com/tia-selection-tool

Brochures

Information material for downloading can be found on the Internet:

http://www.siemens.com/simatic/printmaterial
