Преобразователь DC-DC

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  Преобразователь постоянного тока в постоянный для питания нагрузки от аккумуляторной батареи или от сети постоянного тока. Сохраняет работоспособность при колебаниях входного напряжения в диапазоне от 38 до 121 В.

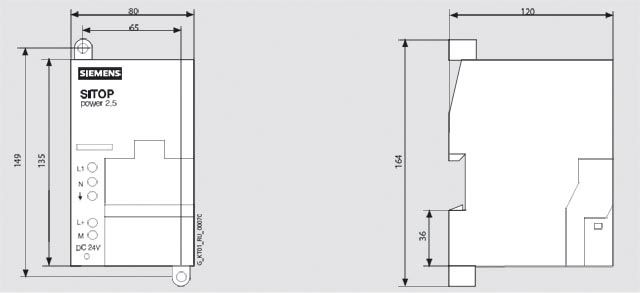

  Чертеж







  Заказной номер:

  6EP1 732-0AA00

  Технические данные

  Order No.	6EP1732-0AA00
  Product	SITOP power
  Power supply, type	24 V/2 A
  Input	-
  Input	DC
  Voltage range min.	-
  Voltage range max.	-
  Supply voltage
  1 for AC
  Minimum rated value	-
  Maximum rated value	-
  2 for AC
  Minimum rated value	-
  Maximum rated value	-
  1 for AC rated value	-
  2 for AC rated value	-
  for DC	48 ... 110 V
  Note	-
  Input voltage
  1 for AC
  Initial value	-
  End value	-
  2 for AC
  Initial value	-
  End value	-
  for DC	38 ... 121 V
  Wide-range input	Yes
  Overvoltage strength	-
  Mains buffering at Iout rated, min.	5 ms
  Mains buffering	at Uin = 48 V
  Rated line frequency
  1	-
  2	-
  Line frequency range  min.	-
  Line frequency range  max.	-
  Input current
  at rated value of the input voltage 120 V rated value	-
  at rated value of the input voltage 230 V rated value	-
  at rated value of the input voltage 24 V rated value	-
  at rated value of the input voltage 48 V rated value	1.2 A
  at rated value of the input voltage 110 V rated value	0.5 A
  at rated value of the input voltage 220 V rated value	-
  at rated value of the input voltage 400 V rated value	-
  at rated value of the input voltage 420 V rated value	-
  at rated value of the input voltage 500 V rated value	-
  Switch-on current limitation (+ 25°C), max.	33 A
  Duration of the switch-on current limitation at 25°C
  Typical	-
  Maximum	-
  I²t, max.	-
  Built-in line-side fuse	T 2.5 A (not accessible)
  Protection in the main supply conductor (IEC 898)	Recommended miniature circuit-breaker: 10 to 25 A, characteristic B or 6 to 25 A, characteristic C, suitable for DC
  Output	-
  Output	Controlled, isolated DC voltage
  Rated voltage Uout rated DC	24 V
  Total tolerance, static ±	1%
  Static line compensation, approx.	0.1%
  Static line compensation, approx.	0.4%
  Residual ripple, peak-peak, max.	0.1 V
  Residual ripple, peak-peak, typ.	-
  Spikes, peak-peak, max. (bandwidth approx. 20 MHz)	0.3 V
  Spikes, peak-peak, max. (bandwidth approx. 20 MHz)	-
  Adjustment range	23.5 ... 26.5 V
  Product function: output voltage is adjustable	Yes
  Adjustment of the output voltage	via potentiometer
  Note	-
  Status indicator	Green LED for 24 V OK
  Signaling	-
  On/Off behavior	Overshoot of Uout on startup max. 25 V
  ON delay, max.	3 s
  Voltage rise, typ.	30 ms
  Maximum voltage rise time of the output voltage	-
  Rated current Iout rated	2 A
  Current range	0 A
  Current range up to +55°C	2 A
  Note	-
  Active power output, typical	48 W
  Short-term overload current in the event of a short-circuit during power-up, typical	-
  Duration of the overload capability overcurrent at short-circuit during power-up	-
  Constant overload current in the event of a short-circuit during power-up, typical	-
  Short-term overload current in the event of a short-circuit during operation, typical	-
  Duration of the overload capability  overcurrent in the event of a short-circuit during operating phase	-
  Constant overload current in the event of a short-circuit during operation, typical	-
  Parallel switching for enhanced performance	Yes
  Note	-
  Number of devices that can be switched in parallel to increase performance, units	2
  Efficiency	-
  Efficiency at Uout rated, Iout rated, approx.	84%
  Efficiency at Uout rated, Iout rated, approx.	9 W
  Closed-loop control	-
  Dyn. line compensation (Uin rated ±15%), max.	0.3%
  Dyn. load compensation (Iout: 50/100/50%), Uout ± typ.	0.8%
  Load-step settling time 50 to 100%, typ.	2.5 ms
  Load-step settling time 100 to 50%, typ.	2.5 ms
  Settling time, maximum	-
  Protection and monitoring	-
  Output overvoltage protection	Yes, suppressor diode at output
  Current limitation	2.1 ... 3 A
  Current limitation, typ.	-
  Property of the output, short-circuit-proof	Yes
  Short-circuit protection	Electronic shutdown, automatic restart
  Sustained short-circuit current rms value
  Maximum	2 A
  Typical	-
  Note	-
  Overload/short-circuit indicator	-
  Safety	-
  Primary/secondary isolation	Yes
  Electrical isolation	Safety extra-low output voltage Uout to EN 60950-1
  Protection class	Class I
  Leakage current
  Maximum	3.5 mA
  Typical	0.7 mA
  CE mark	Yes
  UL/CSA approval	Yes
  UL/cUL (CSA) approval	cULus-listed (UL 508, CSA C22.2 No. 142), File E179336
  Explosion protection	-
  FM approval	No
  FM approval	-
  CB approval	No
  Marine approval	-
  Degree of protection (EN 60529)	IP20
  EMC	-
  Emitted interference	EN 55022 Class B
  Supply harmonics limitation	not applicable
  Noise immunity	EN 61000-6-2
  Operating data	-
  Ambient temperature
  during operating phase	0 ... 70°C
  Note	with natural convection
  Ambient temperature
  during transport	-40 ... +70°C
  Ambient temperature
  during storage	-40 ... +70°C
  Humidity class to EN 60721	Climate class 3K3, no condensation
  Mechanics	-
  Connection system	Screw connection
  Connections
  Supply input	L+1, M1, PE: 1 screw-type terminal each for 2 x 0.5 ... 2.5/1.5 mm² single-core/finely stranded
  Output	L+, M: 1 screw-type terminal each for 2 x 0.5 ... 2.5 mm²
  Auxiliary contacts	-
  Width of enclosure	80 mm
  Height of enclosure	135 mm
  Depth of enclosure	120 mm
  Width/mounting dimensions	80 mm
  Mounting height	235 mm
  Weight, approx.	0.5 kg
  Product property of the enclosure: side-by-side enclosure	Yes
  Type of mounting
  Wall mounting	No
  Standard rail mounting	Yes
  S7-300 DIN rail mounting	No
  Mounting	can be snapped onto standard mounting rail EN 60715 35x15
  Electrical accessories	-
  Mechanical accessories	-
  EAN code	4 025515 140320
